4 Channel
Receptacle

4 Channel Plug

The 4 Channel Delphi connector is a hermaphroditic design used for harsh environments. Such environments include Commercial Broadcasting, Military Field Deployable, Oil field Exploration and Pier-Side usage.

Features:

Hermaphroditic Design ideal for deployable conditions
2 or 4 Fiber Channels
Multimode/Single-mode
Field Maintainable & Repairable
Ruggedness for Harsh Environments

Benefits:

This connector has a unique design and an environmentally protected construction providing protection from high compressive and tensile loads. In addition, seals at every interface ensuring outstanding resistance to moisture penetration. The cable termination is designed to firmly anchor the cable Kevlar® strength members to the connector housing without special tooling.

Specifications:

Description	Measurement/Detail
Number of Channels	2 or 4 Channels
Temperature Humidity	Per TIA/EIA-455-5, Type 2
Field Maintainable	Yes.
Fiber Type	50/125 ; 62.5/125 ; 9/125
Insertion Loss	50/125 -0.6db typical ; 62.5/125 -0.6db typical ; 9/125 -0.25db typical
Operating Temperature	-54C to +85C
Storage Temperature	-65C to +85C
Thermal Shock	-54C to +85C per TIA/EIA-455-3, Test Condition A
Mechanical Shock	Per TAI/EIA-455-2, Method C
Vibration	MIL-STD-1344, Method 2005, Condition II & VI-A
Cable Retention	400 lbs minimum per EIA/TIA-455-6
Cable Twist	1000 cycles per EIA/TIA-455-36
Cable Seal Flexing	100 cycles per MIL-STD-1344, Method 2017
Mating Durability	1000 cycles Minimum per EIA/TIA-455-21
Water Pressure Sealing	Up to 25 PSI for 48 Hrs.
Fluid Immersion	24 Hrs. per Fluid per TIA/EIA-455-12
Impact	Per EIA/TIA-455-2
Crush Resistance	225 lbs per TIA/EIA-455-26
Corrosion Resistance	500 Hrs. Salt Spray per TIA/EIA-455-16
External Bending	45 ft/lb at Mounting Panel
Ozone Exposure	ASTM-D-1149, 100-150 PPM for 2 Hrs.

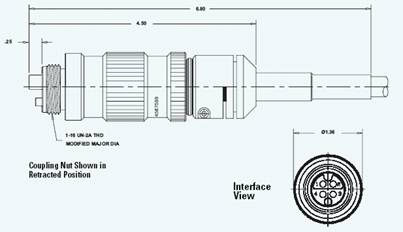

Plug Connector

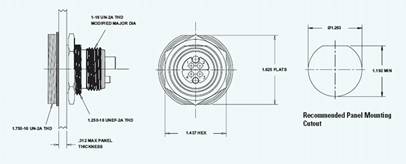

Receptacle Jamnut Mount
